NR120 High Speed Low Latency Dual Band WIFI Industrial Dual SIM LTE 4G 5G WIFI Router for M2M/IOT Projects

NR120 Industrial 4G 5G VPN Router with Sim card slot

Overview

NR120 is a wireless communication router for the Internet of Things. It uses public 3G / 4G / 5G networks to provide users with wireless long-distance large data transmission functions.

This product uses a high-performance industrial-grade 32-bit communication processor and industrial-grade wireless module. It uses an embedded real-time operating system as the software support platform.

This product has been widely used in the M2M industry in the IOT industry chain, such as smart grid, smart transportation, smart home, finance, mobile POS terminal, supply chain automation, industrial automation, smart building, fire protection, public safety, environmental protection, weather , Digital medical, remote sensing survey, military, space exploration, agriculture, forestry, water affairs, coal mining, petrochemical and other fields.

Application

Benifits

• Advanced Failover: Maximize uptime by seamlessly switching between the multiple Internet interfaces (cellular, WAN, Wi-Fi, dual-SIM).

• Multiple Tunneling Schemes: Secure your data using a variety of VPN tunneling schemes, including IPSec, L2TP, PPTP, OpenVPN and GRE.

• Flexible Wi-Fi: 802.11 b/g/n/ac, configurable Wi-Fi as WAN or access point, Wi-Fi Security (WEP / WPA / WPA2 Mixed Mode) and multiple SSID.

• Ethernet and serial for connecting diverse field assets.

• Remote Management provides mass configuration, device management, OTA update, and troubleshooting tools

Frequency(Global Version):

Support SA/NSA network architectures，support ENDC

5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

LTE TDD: B34/B38/B39/B40/B41/B42/B43/B48

Frequency (EU Version)

Suitable for Europe, Asia， Africa and Oceania:

Support SA/NSA network architectures，support ENDC.

5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n41, n77,n78, n79

LTE: B1, B2, B3, B5, B7, B8, B20, B28,B34, B38, B39, B40, B41, B42,B43

WCDMA: B1, B2, B5, B8

Speed:

5G NR：DL 3.4Gbps， UL 900Mbps

LTE Cat20：DL 2.0Gbps，UL 150Mbps

HSPA+：DL 42Mpbs，UL 5.76Mbps

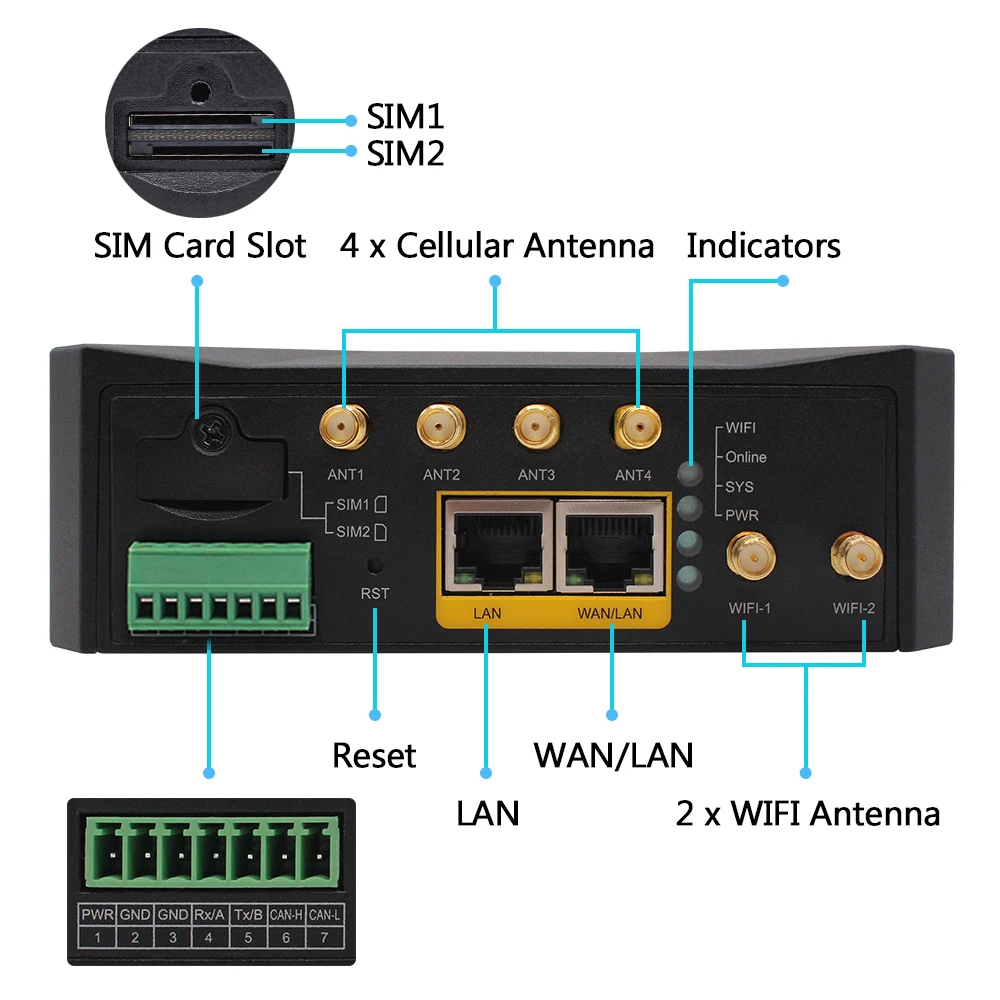

Host Interface:

• 2*10/1000 Base-T RJ45 Ethernet port

• 1*RS-232/RS-485 Serial Port

• 6 SMA antenna connectors ( 2*WI-FI antenna and 4* Cellular Antenna)

• 1*CAN2.0

Lan:

• DNS, DNS Proxy

• DHCP Server

• IP Passthrough (option)

• VLAN

• Host Interface Watchdog

• PPPoE

Serial:

• TCP/UDP PAD Mode

• Modbus (ASCII, DTU, Variable)

• PPP

• Reverse Telnet

Event Engine(optional):

Custom event triggers and reports.

• Configurable interface, no programming.

• Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature.

• Report Types: TCP, UDP, SMS, SNMP Trap, HTTP, JSON.

• Event Actions: Drive Relay Output.

WIFI:

• IEEE802.11b/g/n，2.4G，AP mode ，Station mode (Option)

IEEE802.11ac，5.8G，AP mode ，Station mode(Option)

• Bandwidth: IEEE802.11b/g：54Mbps

IEEE802.11n：300Mbps

IEEE802.11ac：866Mbps

• Adjustable output power (26dBm（11b），21dBm（11ac/MCS7/HT40），20dBm（11ac/MCS9/HT80)

• Simultaneous access point/client mode

• WEP, WPA-PSK, WPA2-PSK etc. Security

Network and routing

:• Network Address Translation (NAT)

• Port Forwarding

• Host Port Routing

• VRRP

• Reliable Static Route

• Dynamic DNS

VPN:

• L2TP, PPTP, IPSec, GRE, and OPENVPN

• Up to 10 concurrent tunnels

• Split Tunnel

• Dead Peer Detection (DPD)

• Multiple Subnets

• VPN Failover

Security:

• Remote Authentication

• DMZ

• Inbound and Outbound Port filtering

• Inbound and Outbound Trusted IP

• MAC Address Filtering.

Operation environment

• Operating Temperature: -35°C to +75°C / -31°F to +167°F

• Storage Temperature: -40°C to 85°C / -40°F to 185°F

• Humidity: 90% RH @ 60°C

Management service

• Secure cloud-based device management application

• Remote provisioning

• Gateway configuration and template management

• Configurable monitoring and alerting

• Software and radio module firmware updates

• Auto configuration

Dimension:

• Housing & Weight: Metal, 500g

• Dimension: (L x W x H): 135*110*43mm (Does not include antenna and mounting parts)mm

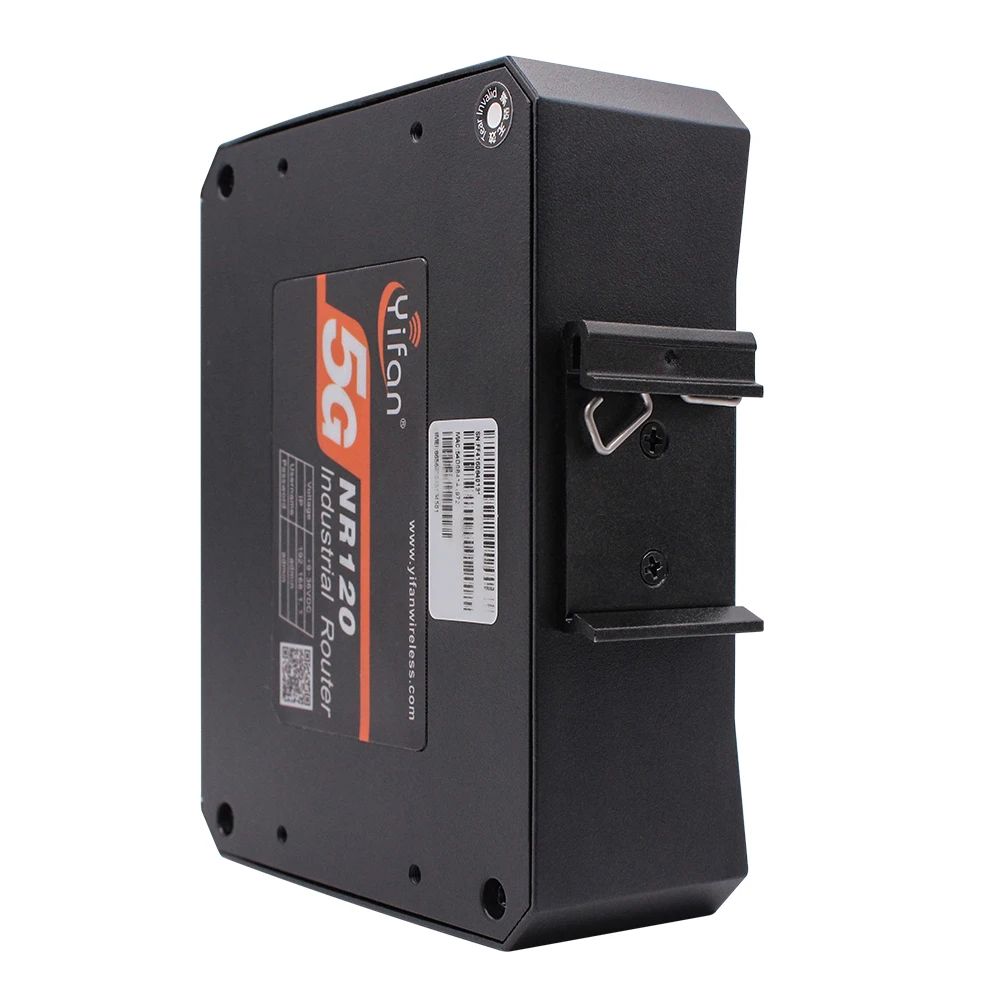

• Installation: wall mounting or desktop

Management interfaces

Web-Based User Interface

• Device Configuration Templates

• Software and radio module firmware updates

• AT Command Line Interface (Telnet/SSH/Serial)

• SMS Commands (Option)

• SNMP
